Performance: conditional rendering (dmx-if)

Improve App Connect performance by using conditional regions (dmx-if) and placing conditional-only data/components inside them so they don’t render or process until needed.

Introduction

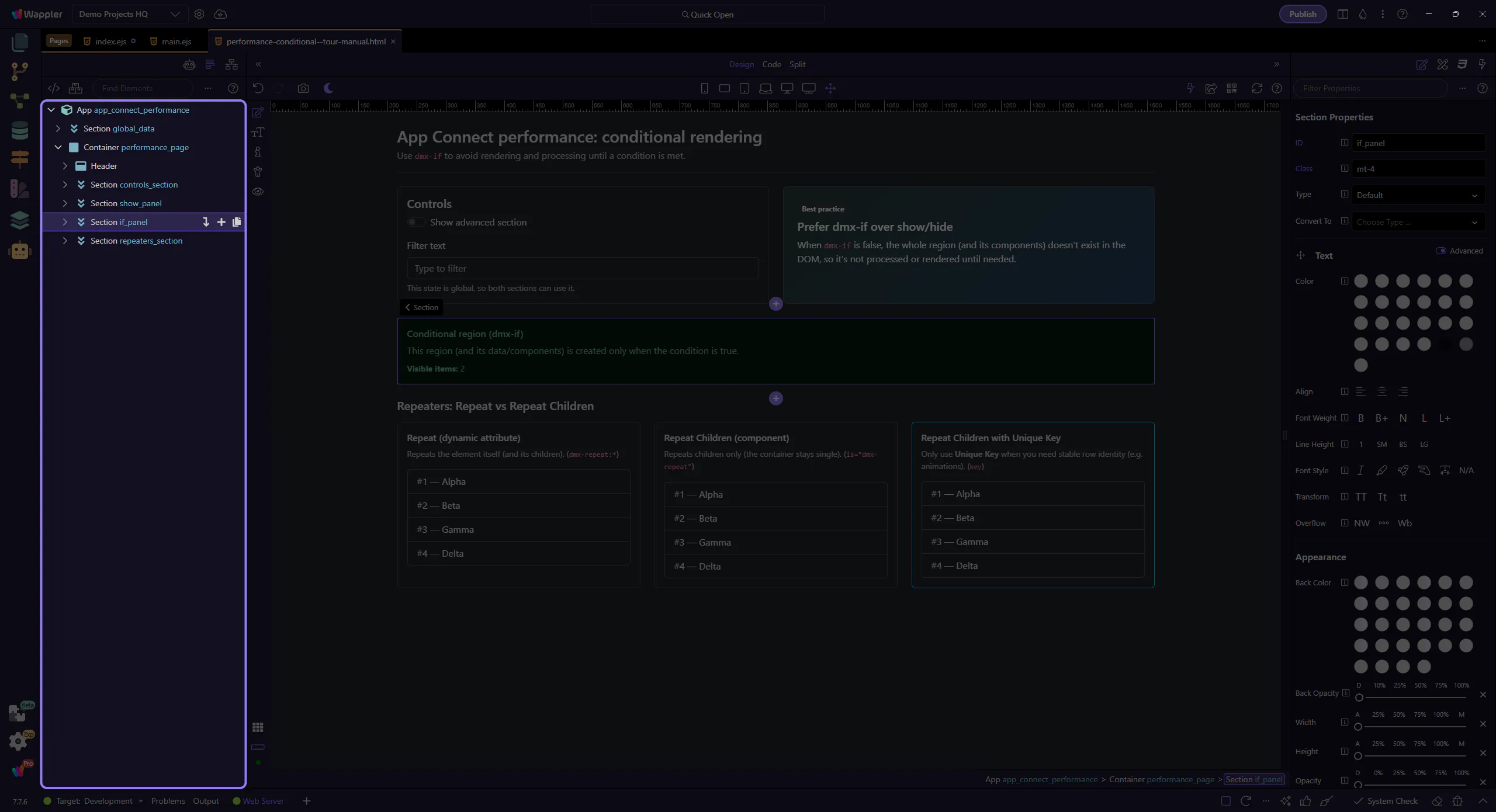

This tour uses a focused example page to explain a practical App Connect performance decision: when to avoid rendering work entirely instead of merely hiding UI. You will compare conditional regions with show/hide behavior, then connect that choice to component scope, repeated DOM cost, and page readability.

Performance: render only when needed

Improve performance by rendering less: use conditional regions (dmx-if) for UI that depends on a condition, and place conditional-only data/components inside that region so they don’t exist until the condition becomes true.

Conditional rendering

Use dmx-if so UI and components don’t render until needed.

Avoid hidden work

dmx-show/hide only toggles CSS visibility; components still exist and can be processed.

Scoped data

Keep global data at the top, but localize data used only inside conditional views.

Prefer dmx-if over dmx-show/hide for conditional UI

Declare conditional-only data/components inside the dmx-if region

Keep shared/global data at the top for readability

Use conditional regions to isolate heavy sections until needed

Repeaters: performance tips

Repeaters can generate a lot of DOM. Prefer the simplest repeater that matches your layout, and only set Unique Key when you truly need it (it slows down the repeater).

Repeat (dynamic attribute) repeats the element itself (dmx-repeat:*)

Repeat Children (component) repeats children only (is="dmx-repeat")

Only set Unique Key when needed (animations / stable DOM identity)

Conditional rendering vs show/hide

Understand why dmx-if is recommended for performance and how it changes what gets rendered.

Conditional Region vs Show/Hide

Use a Conditional Region (dmx-if) when a part of the page depends on a condition or isn’t needed right away.

important: Best performance: use Conditional Region (dmx-if) for conditional UI, not Show/Hide dynamic attributes.

Conditional Region (dmx-if): when false, the region is not rendered (no DOM nodes, no child components)

Show/Hide dynamic attributes (dmx-show / dmx-hide): toggle CSS visibility only; the region is still rendered

Performance tip: use a Conditional Region for heavy/optional sections so they aren’t processed until needed

Conditional Region (dmx-if)

This section uses a Conditional Region (dmx-if), so it only exists when the condition is true.

Place conditional-only data inside

If a Data View, Data Store, or Server Connect component is used only inside a section that’s shown conditionally, declare it inside that Conditional Region (dmx-if) so it isn’t processed until needed.

tip: When the condition is false, the Conditional Region and its child components don’t exist at all.

Global/shared data: keep at the top for readability and reuse

Conditional-only data/components: declare inside the dmx-if region

This prevents “always-on” processing for sections users may never open

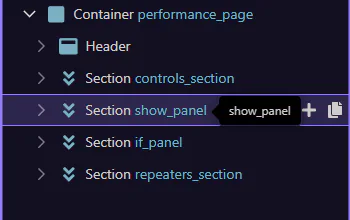

Show dynamic attribute (dmx-show)

This section uses the Show dynamic attribute (dmx-show), so it stays in the page structure and its child components exist even when hidden.

warning: Show/Hide dynamic attributes are visibility toggles (CSS). They do not prevent rendering/processing of the region’s components.

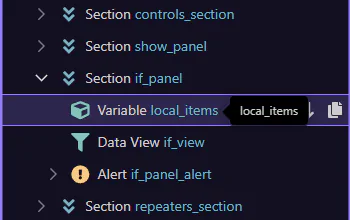

Local data inside Conditional Region

This data component lives inside the Conditional Region. Keeping conditional-only data/components inside a Conditional Region (dmx-if) avoids always-on work.

tip: Rule of thumb: global for shared page-wide state; local for conditional-only sections.

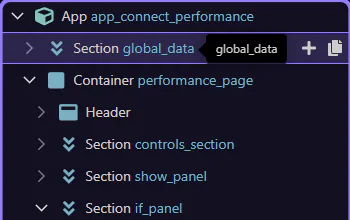

Shared global data

Shared state and data that multiple regions use can stay at the top for readability and reuse.

Global data: referenced by multiple UI regions

Local (conditional) data: referenced by one conditional region only

Use dmx-if to isolate heavy sections until needed

Repeaters: performance and key field

Repeaters can generate lots of DOM. Learn when to use each repeater style, and when to avoid the key field for better performance.

Repeaters: Repeat vs Repeat Children

Repeaters can create many DOM nodes. Choose the simplest repeater that matches your layout needs.

Repeat (dynamic attribute): repeats the element itself (and its children) (dmx-repeat:*)

Repeat Children (component): repeats children only (container stays single) (is="dmx-repeat")

Fewer DOM nodes usually means less work when updating

Unique Key: only when you need stable row identity (animations / DOM identification) — don’t set it by default (it slows down the repeater)

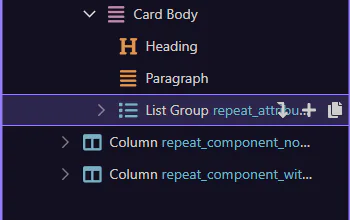

Repeat (dynamic attribute)

This example uses Repeat (dynamic attribute). It repeats the element itself. Great for simple repeated elements, but can lead to extra wrapper DOM if you repeat large containers. (dmx-repeat:*)

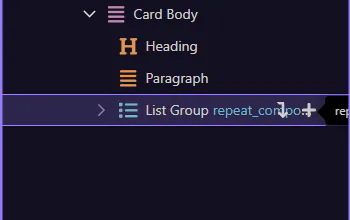

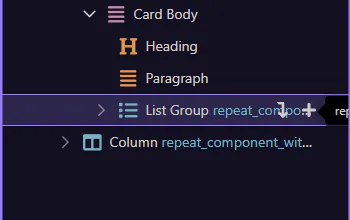

Repeat Children (component)

This example uses Repeat Children (component). It repeats only the children, so your layout container stays single and clean when building grids/cards. (is=“dmx-repeat”)

Unique Key: only when needed

This Repeat Children repeater sets a Unique Key. Only do this when you need stable row identity (animations, or DOM identification).

warning: Choose the unique key field to identify the repeater’s record. Only needed when you want to use animations or need to identify repeater’s rows in DOM. Do not use if not needed as it will slow down the repeater.

Wrap-up

Review what you did and choose a next tour.

Next steps

Pick a related tour to continue.
